Re:Dx24 900MHz Trainer mode and BT speech input 25 Feb 2016 15:00 #7

  • onki
  • onkis Avatar Autor
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 2286
  • Dank erhalten: 790

hi onki. why not using 1 rsat + 1 900mhz rx for the model and use the second 2.4 ghz rf module for student-trainer?


Hi Uwe,

I have no info at the moment if the 900MHz will support Telemetry as well. This is something I definitely require on the second channel.
In addition it would make sense to modify just the student transmitter rather than every model with CB200 and 2 RSats already in place.

Best regards
Onki
Gruß aus dem Nordschwarzwald
Rainer aka Onki
www.onki.de
gepostet unter Verwendung von 100% recycelter Elektronen.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Dx24 900MHz Trainer mode and BT speech input 23 Mär 2016 18:03 #8

  • Raf
  • Rafs Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Beiträge: 133
  • Dank erhalten: 179
Hi, DC-24 & DS-24 will contain a 4-pin audio Jack (combined microphone/stereo output). Bluetooth is not planned for voice at the moment.
Martin
Voltario T30, Touch Switch, MicroVario, AMS, SE6
Folgende Benutzer bedankten sich: Jürgen, PW, ***EX, wstech

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Dx24 900MHz Trainer mode and BT speech input 23 Mär 2016 18:08 #9

  • PW
  • PWs Avatar
  • Offline
  • Moderator
  • Moderator
  • Beiträge: 9328
  • Dank erhalten: 3510
Hi,

also great job Martin !

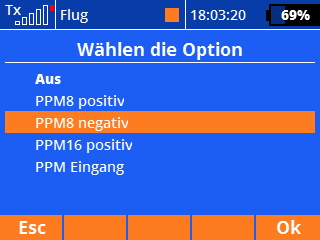

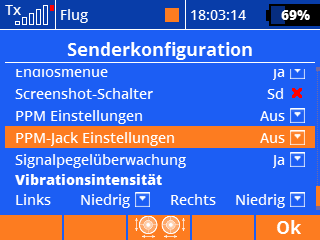

PPM JACK Input and Output in the antenna mount. Use mono Jack connector. See the menu System -> Configuration -> PPM Jack configuration.

here you see






Regards
PW
Rechtsbeistand u.a. bei "Modellflugproblemen"etc. : Rechtsanwälte Wessels & Partner, Tel.: 02362/27065

PW Modellbautechnik ( Jeti Kombiangebote, Beratung/Einstellservice etc.)
Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Letzte Änderung: von PW.

Dx24 900MHz Trainer mode and BT speech input 24 Mär 2016 07:11 #10

  • onki
  • onkis Avatar Autor
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 2286
  • Dank erhalten: 790
Hi,

OK - no bluetooth means DC24 is useless to me. This means I will abort all plans to buy a DC24 replacing my DC16.

Then I keep going with my pimped DC16 for the next couple of years.
It's really a pity to think a color display defines premium.

Best regards
Onki
Gruß aus dem Nordschwarzwald
Rainer aka Onki
www.onki.de
gepostet unter Verwendung von 100% recycelter Elektronen.
Folgende Benutzer bedankten sich: kramrle

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Dx24 900MHz Trainer mode and BT speech input 24 Mär 2016 07:27 #11

  • PW
  • PWs Avatar
  • Offline
  • Moderator
  • Moderator
  • Beiträge: 9328
  • Dank erhalten: 3510
Hi Onki,

why Jeti at the moment will make no BT was mentioned here serveral times.

BT modification done from users - like you with your DC-16 - is your own decision, but also your own risk. Certification (KE/CE) was never done with BT inside the TX. If you are happy with your modified BT, that is fine. But if perhaps having problems.... please do not forget, that DC-16 has no BT certification.

As long as there is no official "TX certification with integrated BT" ; you know what this means. Flying is your own risk, because never tested from Jeti factory or KE office.

Hope you will have serveral years with DC-16/BT flights without problems of course; but if perhaps getting problems/crash please be so fair to mention directly that you personally installed BT in the TX.


Regards
PW
Rechtsbeistand u.a. bei "Modellflugproblemen"etc. : Rechtsanwälte Wessels & Partner, Tel.: 02362/27065

PW Modellbautechnik ( Jeti Kombiangebote, Beratung/Einstellservice etc.)

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Letzte Änderung: von PW.

Dx24 900MHz Trainer mode and BT speech input 24 Mär 2016 08:26 #12

  • Jürgen
  • Jürgens Avatar
  • Offline
  • Moderator
  • Moderator
  • Beiträge: 4245
  • Dank erhalten: 1997
I define premium about:

_______________ DC24______ DC/DS16
Flight Modes ...........10.................... 6
Free Mixes ............. 30 ...................12
Logical Switches ..... 24 ................. 16
Explorer .................. 24 .................. 8
Sequencer ...............10 .................. 3
Times ..................... 10 ................... 6
Display Telemetry ... 40 ................. 20
Telemetry ................ 64 ................. 32
Sound on Event ........40 ................ 10
Alarms ......................40 ................. 20
Function .................. 24 ................. 14
Telemtry Controls ....16 ................... 8
Voice Comands .... 16.................... 0

and LUA, not about BT.
Gruß
Jürgen
the master of the Desaster
Folgende Benutzer bedankten sich: sunbeam

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Letzte Änderung: von Jürgen.
