THEMA: how to get flight data on maps

how to get flight data on maps 19 Jan 2017 19:24 #1

  • wimapon
  • wimapons Avatar Autor
  • Offline
  • Junior Boarder
  • Junior Boarder
  • Beiträge: 28
  • Dank erhalten: 1
Hello,
we use gpsvisualzer program to look at the flight-path on a google map.
This works perfect, but we have seen somewhere in the past a program
that also put the flight-speed and altitude at the side of the map...
The program followed the plane from place to place as a movie.

Where can i find that program??

Wim Apon and Jan Bakker
Folgende Benutzer bedankten sich: Thorn

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

how to get flight data on maps 19 Jan 2017 20:41 #2

  • NicoS
  • NicoSs Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Beiträge: 277
  • Dank erhalten: 55
If you have a Jeti transmitter you can use Jeti Studio. Log the GPS data in the transmitter and import this file in Jeti studio.

www.jetimodel.com/en/JETI-Studio-2/


I think you are Dutch. Right???

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

how to get flight data on maps 20 Jan 2017 09:08 #3

  • wimapon
  • wimapons Avatar Autor
  • Offline
  • Junior Boarder
  • Junior Boarder
  • Beiträge: 28
  • Dank erhalten: 1
Yes NicoS, we are dutch and have both the jeti transmittor ( of course...)
So, do i understand it right... make a flight, put the data in the sender, and then copy the data to a pc and then start jetistudio in that Pc?
Wim

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

how to get flight data on maps 20 Jan 2017 10:50 #4

  • NicoS
  • NicoSs Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Beiträge: 277
  • Dank erhalten: 55
The transmitter can store data while flying. These data are used for Jeti Studio.
The transmitter must be set to the required purpose. The best you can reading the manual, the chapter "Sensors / logging Setup".

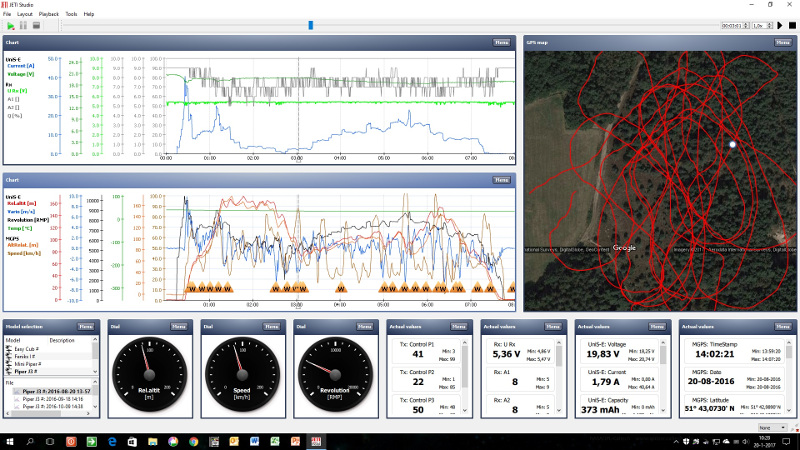

Nice pictures as below are then possible.

The synthesizer in the transmitter can speak values, for example, height and speed. This can be periodically, for example every 30 seconds and / or after the flip of a switch.

Please note that the GPS altitude is not so accurate and the GPS speed is ground speed and not air speed.

Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Letzte Änderung: von NicoS.

how to get flight data on maps 20 Jan 2017 15:08 #5

  • wimapon
  • wimapons Avatar Autor
  • Offline
  • Junior Boarder
  • Junior Boarder
  • Beiträge: 28
  • Dank erhalten: 1
His NicoS,
That is exactly what we are looking for...
Where can i find the manual, the chapter "Sensors / logging Setup?

thanks !

Wim

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

how to get flight data on maps 20 Jan 2017 15:49 #6

  • NicoS
  • NicoSs Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Beiträge: 277
  • Dank erhalten: 55
In the English manual v3.00 page 120 (chapter 9.4.5) for Loggin/Setup and page 100 (chapter 9.3) for activating the logging with a switch.

www.jetimodel.com/en/katalog/Transmitters/@produkt/DC-16/

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Letzte Änderung: von NicoS.
