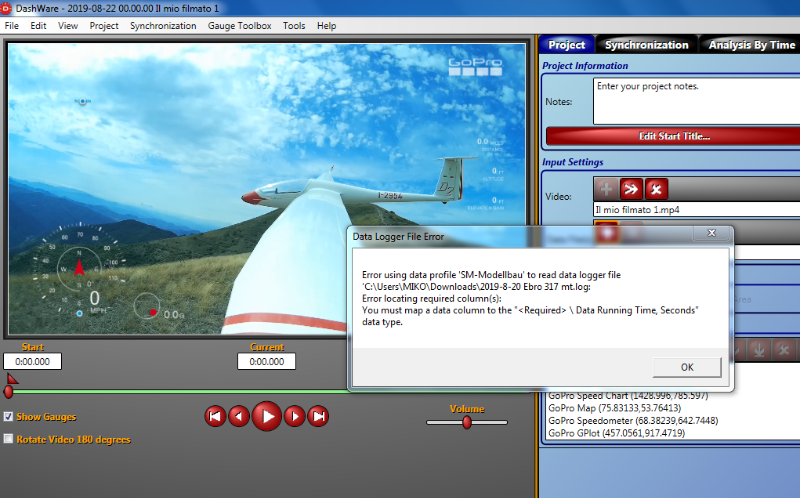

I am trying to use DashWare software to add telemetry gauges to my flight videos.
Dashware accept file in "SM modella" format but Jeti is not mentioned. I'm not able to understand which are the differences in the files.

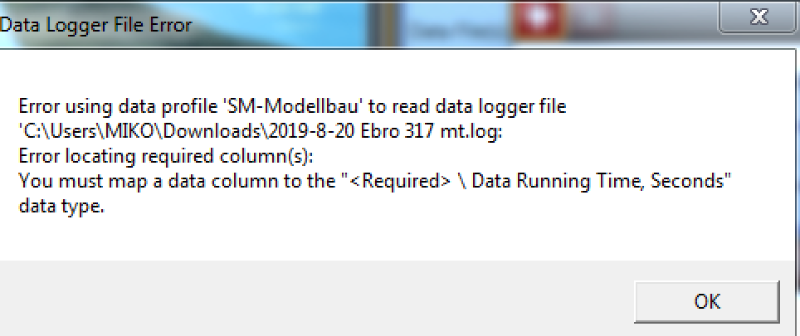

I try to convert .log file in .csv but seems not correct for data/time column not present or wrong.
If someone between you expert have solved this problem I'll be happy to get infos!
Thanks a lot
Dashware accept file in "SM modella" format but Jeti is not mentioned. I'm not able to understand which are the differences in the files.
I try to convert .log file in .csv but seems not correct for data/time column not present or wrong.
If someone between you expert have solved this problem I'll be happy to get infos!
Thanks a lot
M I K O
Last Edit:22 Aug. 2019 14:50
von Miko
Letzte Änderung: 22 Aug. 2019 14:50 von Miko.
Bitte Anmelden oder Registrieren um der Konversation beizutreten.
- Miko
- Offline Autor
- Elite Mitglied
- Beiträge: 183
- Dank erhalten: 9

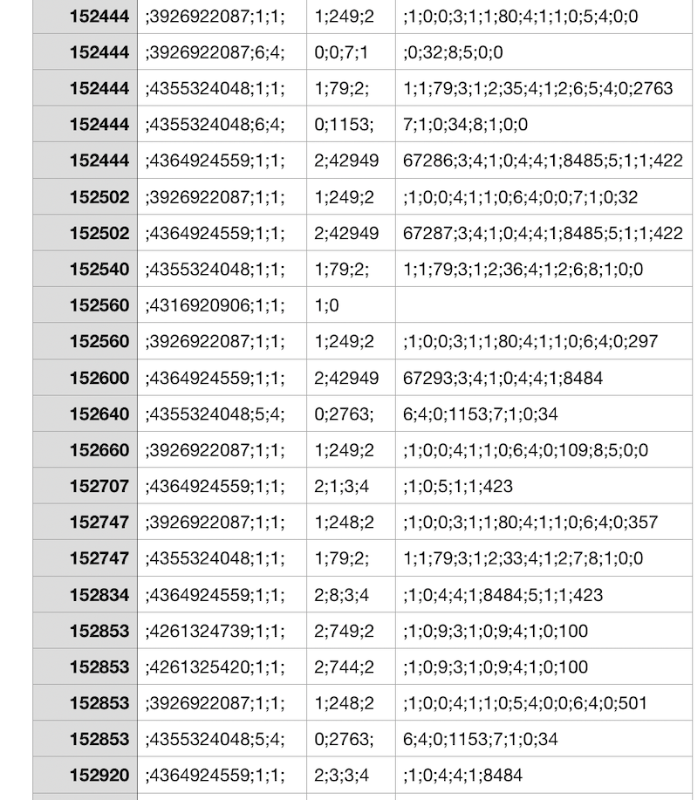

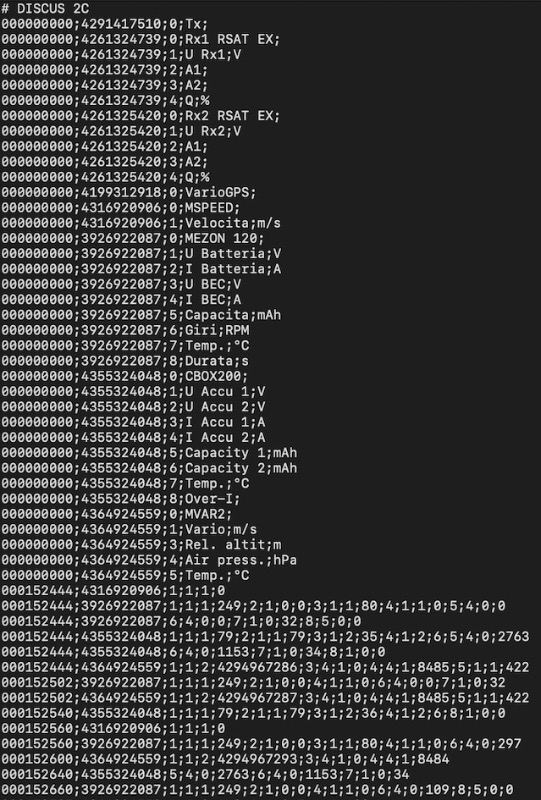

Here .log file from Jedi exported to Dashware as a SM Modellbau file type.
I don't know what I can do then !
I don't know what I can do then !
M I K O
Last Edit:22 Aug. 2019 14:35
von Miko
Letzte Änderung: 22 Aug. 2019 14:35 von Miko.
Bitte Anmelden oder Registrieren um der Konversation beizutreten.
- Miko
- Offline Autor
- Elite Mitglied
- Beiträge: 183
- Dank erhalten: 9
- Miko
- Offline Autor
- Elite Mitglied
- Beiträge: 183
- Dank erhalten: 9
This is what DashWare needs, from their FAQ page
Here are some notes on making a DashWare-friendly CSV data file:
-It’s good to have a static line of text at the top declaring that it is your data format. Something like “Some Cool Logger Data File”. The DashWare Data Profile for your format can then be easily set up to automatically detect one of your data files.
-We require a CSV header line: A line of text containing the column headers/names.
-Then the raw data lines would follow after that.
-There should be a Time column (full timestamps work great, e.g. “2011/08/07 20:10:02.200”, or the total running time in seconds e.g. “1.1”)
-Latitude and Longitude should be in +/- decimal degrees
-Be consistent with your data units, or at least change the column name when you use different units. DashWare can be used to create calculated data columns for other units.
Here are some notes on making a DashWare-friendly CSV data file:
-It’s good to have a static line of text at the top declaring that it is your data format. Something like “Some Cool Logger Data File”. The DashWare Data Profile for your format can then be easily set up to automatically detect one of your data files.
-We require a CSV header line: A line of text containing the column headers/names.
-Then the raw data lines would follow after that.
-There should be a Time column (full timestamps work great, e.g. “2011/08/07 20:10:02.200”, or the total running time in seconds e.g. “1.1”)
-Latitude and Longitude should be in +/- decimal degrees
-Be consistent with your data units, or at least change the column name when you use different units. DashWare can be used to create calculated data columns for other units.
M I K O
Last Edit:22 Aug. 2019 14:52
von Miko
Letzte Änderung: 22 Aug. 2019 14:52 von Miko.
Bitte Anmelden oder Registrieren um der Konversation beizutreten.
- nikolausi
- Offline
- Platinum Mitglied
- Beiträge: 327
- Dank erhalten: 153
the free software DataExplorer
www.nongnu.org/dataexplorer/
can import Jeti log files and export them as CSV UTF-8 DashWare.
Install DataExplorer then set Device to JetiAdapter (Device > Select device / port > JetiAdapter)
www.nongnu.org/dataexplorer/
can import Jeti log files and export them as CSV UTF-8 DashWare.
Install DataExplorer then set Device to JetiAdapter (Device > Select device / port > JetiAdapter)
jemoview - jeti model viewer
jetiforum.de/index.php/flightmonitor/120...w-jeti-modell-viewer
github.com/werinza/jemoview
R2H - Return to Home Lua App
jetiforum.de/index.php/lua-fuer-die-dc-d...2-r2h-return-to-home
github.com/werinza/R2H
jetiforum.de/index.php/flightmonitor/120...w-jeti-modell-viewer
github.com/werinza/jemoview
R2H - Return to Home Lua App
jetiforum.de/index.php/lua-fuer-die-dc-d...2-r2h-return-to-home
github.com/werinza/R2H
von nikolausi
Folgende Benutzer bedankten sich: Miko
Bitte Anmelden oder Registrieren um der Konversation beizutreten.
- Miko
- Offline Autor
- Elite Mitglied
- Beiträge: 183
- Dank erhalten: 9
Danke Nikolaus,
I use already Data Explorer so I will test your solution for sure.
File seems good, now let me try to map exactly the file in DashWare.
Probably the error originates from mapping and not from Jeti .log file
I will keep you informed.
Danke, thanks a lot !
I use already Data Explorer so I will test your solution for sure.
File seems good, now let me try to map exactly the file in DashWare.
Probably the error originates from mapping and not from Jeti .log file
I will keep you informed.
Danke, thanks a lot !
