DC24 II emulator display LUA bug vs DC24 wurde erstellt von borisff

Posted 25 Feb. 2025 23:00 #1
Hello

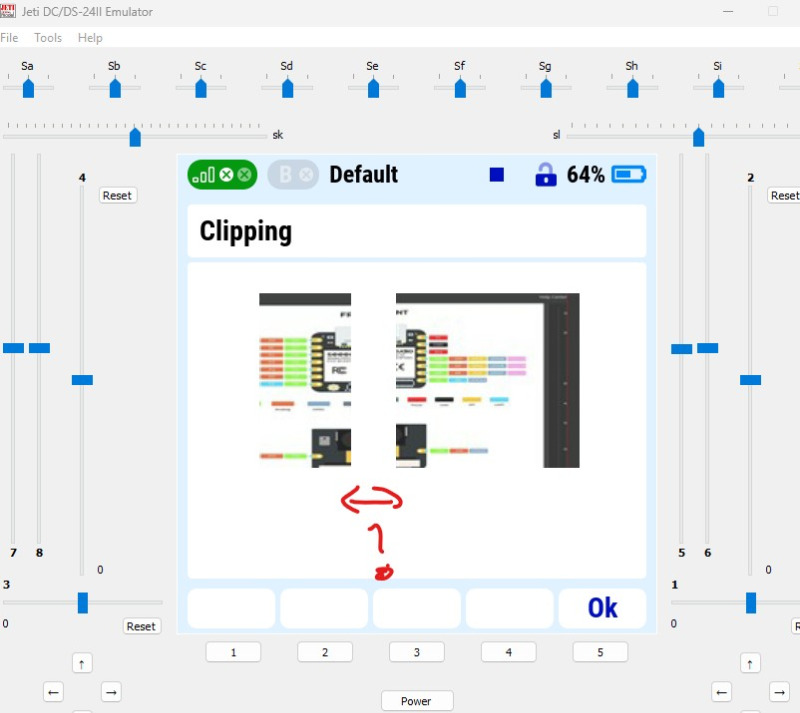

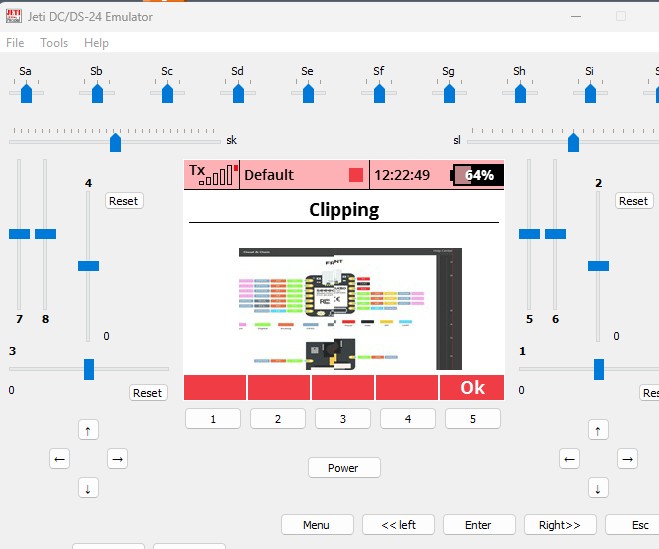

here a DC24 II emulator display LUA bug except if someone is able to explain what is wrong
in the attached lua script. It's easy to reproduce. The two images are 128x128 pixels
(created with PIXresizer). Thanks to have a look.
Code:
local lGname = "Clipping" local lMaps = "" local clipW = 256 local clipH = 128 local clipX = 50 local clipY = 15 local png1 local png2 local function printForm(width, height)   if (png1 == nil) then png1 = lcd.loadImage(lMaps .. "/i1.jpg") end   if (png2 == nil) then png2 = lcd.loadImage(lMaps .. "/i2.jpg") end   if (png1 and png2) then     lcd.setClipping(clipX, clipY, clipW, clipH)     lcd.drawImage(95, 6, png1, 220)     lcd.drawImage(-33, 6, png2, 220)     lcd.resetClipping()   end end local function init()   local tmp, lEmul = system.getDeviceType()   if (lEmul == 1) then     lMaps = "F:/Imgs"   end   system.registerForm(1, MENU_MAIN, lGname, nil, nil, printForm) end collectgarbage() return {init=init, author="Me", version="1.0", name=lGname}
von borisff

Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Günter07
  • Günter07's Avatar Offline
  • Elite Mitglied
  • Elite Mitglied
  • Beiträge: 267
  • Dank erhalten: 263

Günter07 antwortete auf DC24 II emulator display LUA bug vs DC24

Posted 26 Feb. 2025 09:32 #2
Hi,

if there is a minus value in the X position in this case -33, this will unfortunately be doubled! Jeti is aware of the error and has fixed it. It will work correctly with the next update.
von Günter07

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • borisff
  • borisff's Avatar Offline Autor
  • Senior Mitglied
  • Senior Mitglied
  • Beiträge: 64
  • Dank erhalten: 3

borisff antwortete auf DC24 II emulator display LUA bug vs DC24

Posted 26 Feb. 2025 09:36 #3

Günter07 wrote: Hi,

if there is a minus value in the X position in this case -33, this will unfortunately be doubled! Jeti is aware of the error and has fixed it. It will work correctly with the next update.

Hello,
thanks.
von borisff
