Bad visibility of waveforms with dark color schemes wurde erstellt von ahahn
Posted 30 Aug. 2025 20:44
JETI DC-24 II, version 6.03.1832
The waveform viewer for log information uses bad colors when display ist set to a dark color scheme (Dark, Dark Orange, Dark Red, Dark Blue, Dark Blue).
The visibility of the selected waveform colors is bad, because of the grey background. E.g. green lines are nearly invisible, especially at daylight.
Please use another color set for dark modes.
See the attached screenshot examples.
regards
Alois
Ingmar, please forward

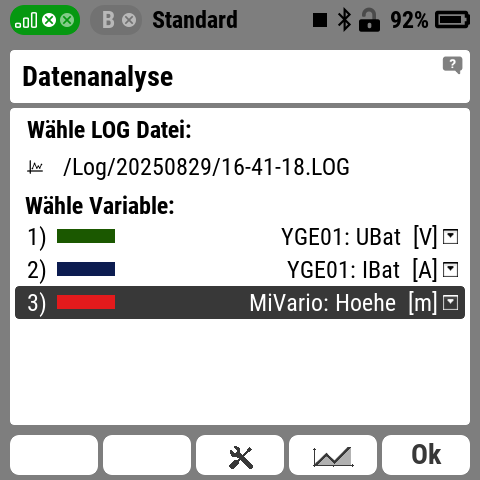

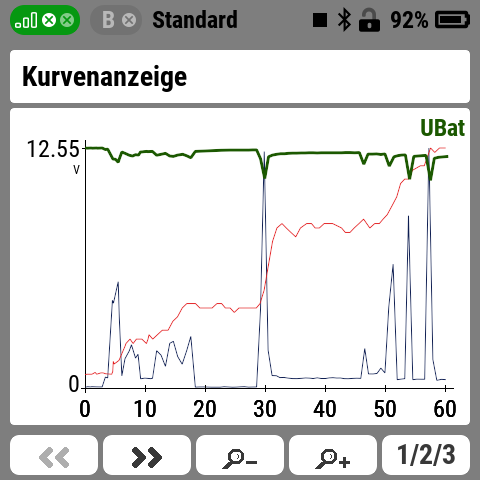

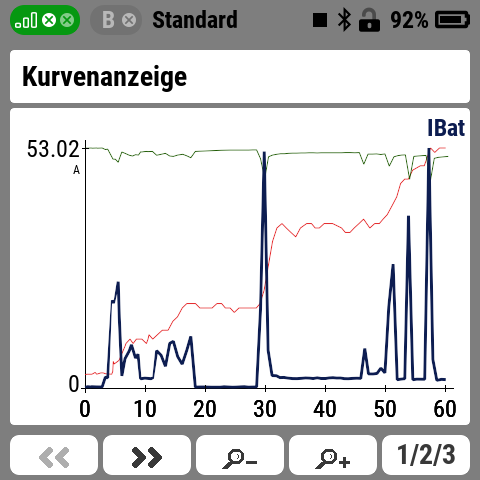

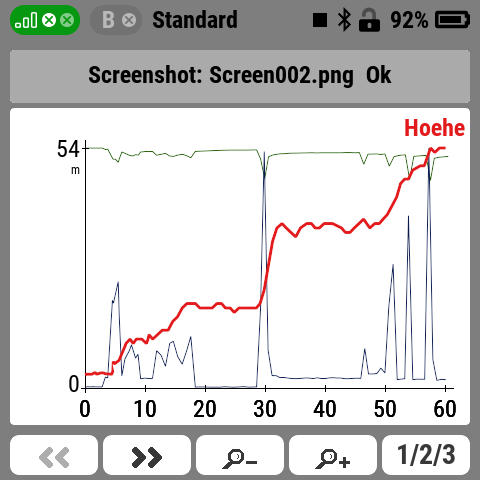

good

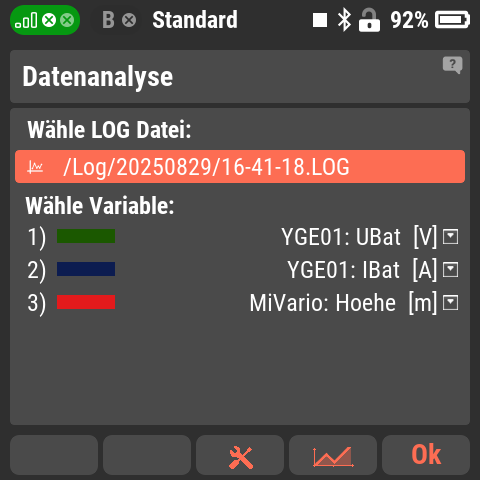

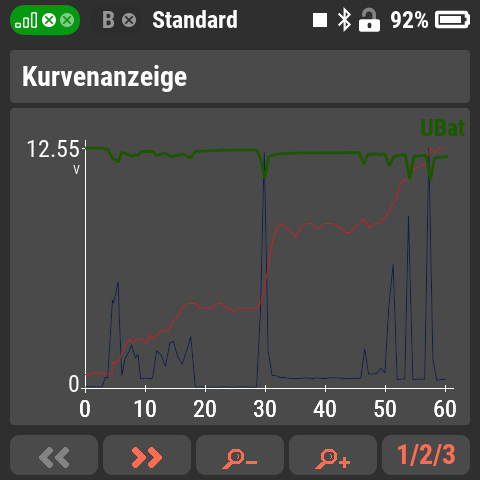

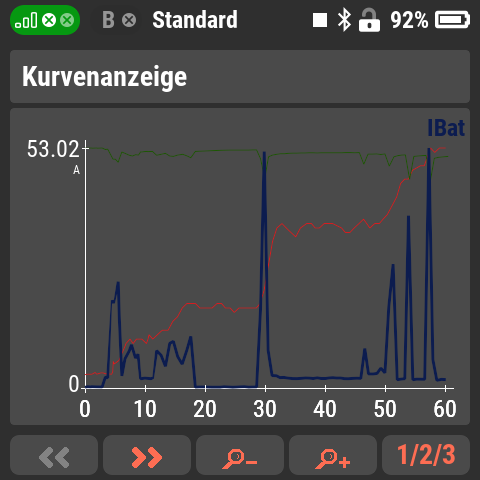

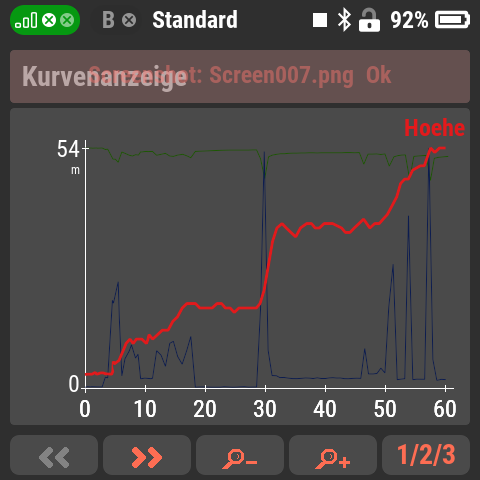

bad
The waveform viewer for log information uses bad colors when display ist set to a dark color scheme (Dark, Dark Orange, Dark Red, Dark Blue, Dark Blue).
The visibility of the selected waveform colors is bad, because of the grey background. E.g. green lines are nearly invisible, especially at daylight.
Please use another color set for dark modes.
See the attached screenshot examples.
regards
Alois
Ingmar, please forward
good
bad
