Waveform Viewer confused by empty log entries

JETI DC-24 II, version 6.03.1832

The waveform viewer does not behave correctly, if the log contains zero item entries.

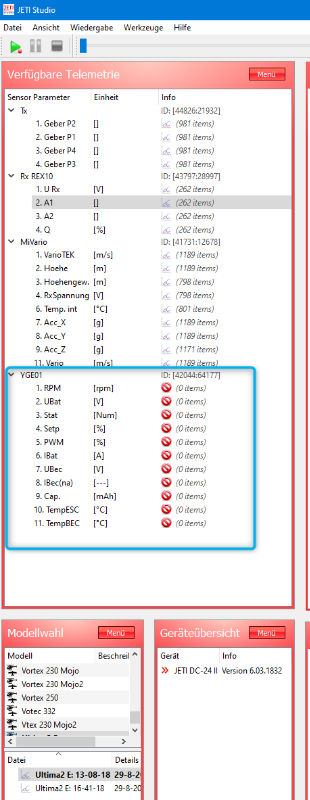

e.g. in my example the YGE01 did not deliver telemetry (for whatever reason). This can be seen correctly in Jeti Studio

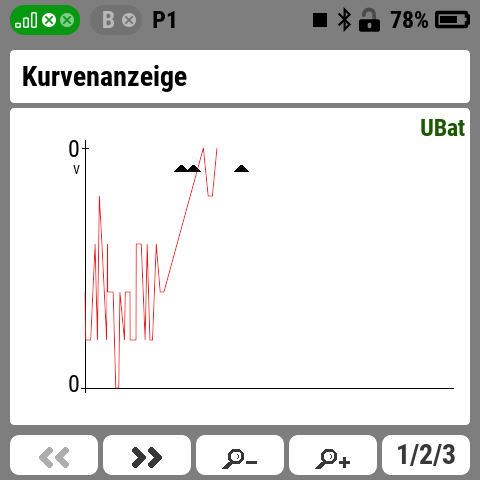

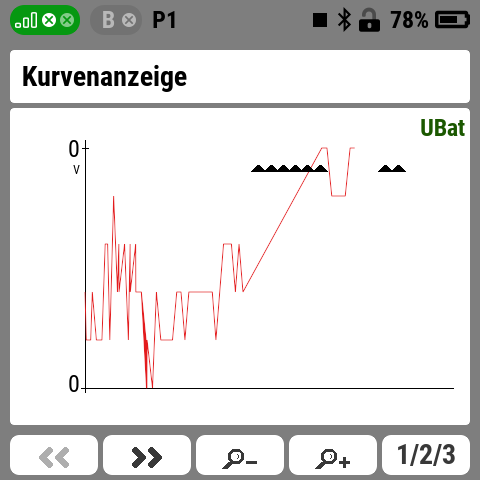

The viewer on the DC-24 II does not handle this case correctly, no time scale and no cursor are shown.

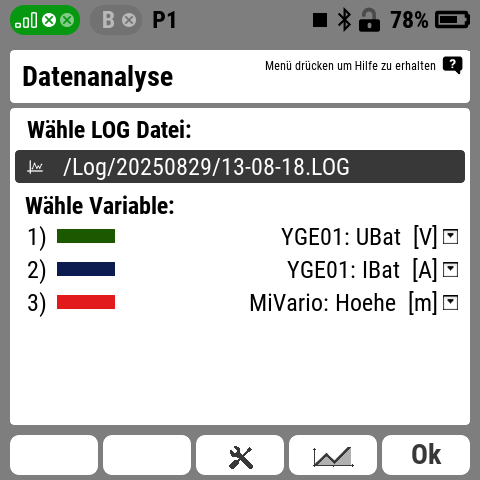

In attached example it does not show "Hoehe[m]" correctly, which comes from another sensor and is valid.

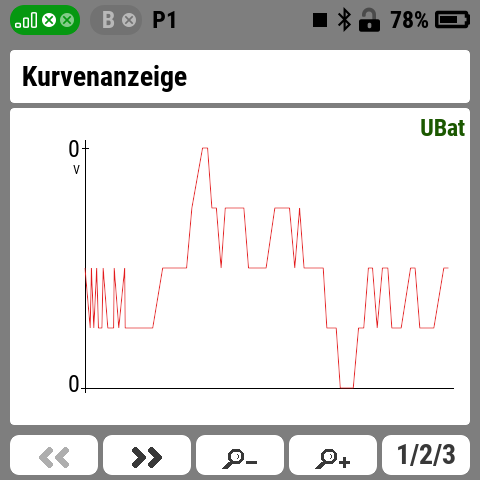

In fact, the YGE01: are invalid. If YGE01: are omitted, it works and the display is correct.

The problem from users view is, that it does not give any indication about the cause of the problem.
IMO this is a bug and shall be fixed.

Imgmar, please forward to Jeti.

Thanks




Alois

Ist weitergeleitet!

Ingmar

Hallo Alois,
hallo an Alle,
Jeti wird versuchen das Problem in einem der nächsten Updates zu fixen.

Ingmar
