Hello
I wish a sensor to be connected to my DS16 to measure wind meters on the slope. Something like Vaavuud but simple and small......using Jeti technology inside.......
Ciao
I wish a sensor to be connected to my DS16 to measure wind meters on the slope. Something like Vaavuud but simple and small......using Jeti technology inside.......
Ciao
M I K O
Last Edit:12 Dez. 2015 20:44
von Miko
Letzte Änderung: 12 Dez. 2015 20:44 von Miko.
Bitte Anmelden oder Registrieren um der Konversation beizutreten.
- Henning
- Offline
- Elite Mitglied
- Beiträge: 316
- Dank erhalten: 144
Hello Miko,
good idea, and I think the hardware as well as the software would be easy to realize.
The HW could be done with this concept: DIY Digital-Anemometer
This "bicycle speed impulse" could then easily be sampled e.g. by an OpenXSensor (based on Arduino) or every other Jetisensor with adapted Firmware (e.g. MUI, MVario, myVario). The sensor connects to a RSAT then, which is linked to the DS/DC transmitter...
But in which mode of operation would you bind this "wind sensor"?
It will appear as a separate model on your DS and could not be bound in parallel to your R/C model, as long as you don't sacrifice the dual HF between Transmitter and R/C model... - Any idea?
Just build it up and test! I am interested in the result
Kind regards,
Henning
good idea, and I think the hardware as well as the software would be easy to realize.
The HW could be done with this concept: DIY Digital-Anemometer
This "bicycle speed impulse" could then easily be sampled e.g. by an OpenXSensor (based on Arduino) or every other Jetisensor with adapted Firmware (e.g. MUI, MVario, myVario). The sensor connects to a RSAT then, which is linked to the DS/DC transmitter...
But in which mode of operation would you bind this "wind sensor"?
It will appear as a separate model on your DS and could not be bound in parallel to your R/C model, as long as you don't sacrifice the dual HF between Transmitter and R/C model... - Any idea?
Just build it up and test! I am interested in the result
Kind regards,
Henning
Last Edit:13 Dez. 2015 11:19
von Henning
Letzte Änderung: 13 Dez. 2015 11:19 von Henning.
Bitte Anmelden oder Registrieren um der Konversation beizutreten.
- Miko
- Offline Autor
- Elite Mitglied
- Beiträge: 183
- Dank erhalten: 9
Henning

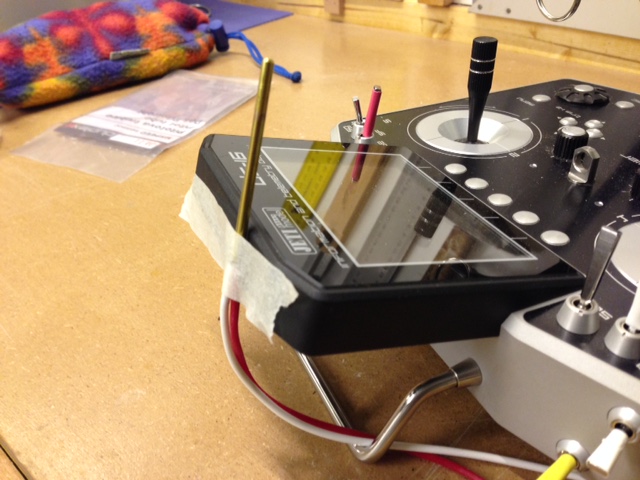

I'm not able to develop the system, but I thought something like in the photo attached ( pitot tube connected to DS-DC)
It's a too simple idea, I know.
I tested MSpeed with my car: pitot fixed out and DS+ RX inside. ( very bad measure compared with car tachimeter!!!)
Air flux inside the pitot measure the speed of the plane; if pitot it's fixed must measure also the wind speed?
Or a solution not attached TX but linked with DS DC via bluethoot...and with a switch you can see telemetry of this
"ground sensor".
My 3D it's a wish but unfortunately I've no technical capacities to move on.
I'm not able to develop the system, but I thought something like in the photo attached ( pitot tube connected to DS-DC)
It's a too simple idea, I know.
I tested MSpeed with my car: pitot fixed out and DS+ RX inside. ( very bad measure compared with car tachimeter!!!)
Air flux inside the pitot measure the speed of the plane; if pitot it's fixed must measure also the wind speed?
Or a solution not attached TX but linked with DS DC via bluethoot...and with a switch you can see telemetry of this
"ground sensor".
My 3D it's a wish but unfortunately I've no technical capacities to move on.
M I K O
von Miko
Bitte Anmelden oder Registrieren um der Konversation beizutreten.
- AlexBonfire
- Offline
- Platinum Mitglied
- Beiträge: 1083
- Dank erhalten: 328
Miko wrote: Hello
I wish a sensor to be connected to my DS16 to measure wind meters on the slope. Something like Vaavuud but simple and small......using Jeti technology inside.......
Ciao[/quote
This is a pretty good Idea !
Not really "need to have" but very nice.
von AlexBonfire
Bitte Anmelden oder Registrieren um der Konversation beizutreten.
- Miko
- Offline Autor
- Elite Mitglied
- Beiträge: 183
- Dank erhalten: 9

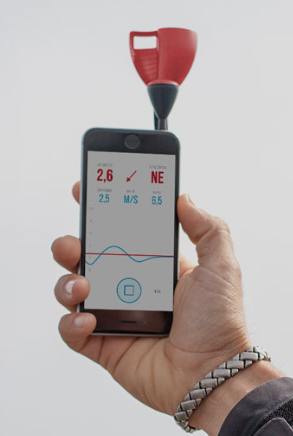

I imagine something like Vaavud ( see photo) connected to DS-.DC via cable or via bluetooth.
If the sensor is running connected to a smartphone must also measure connected to Duplex.....
If the sensor is running connected to a smartphone must also measure connected to Duplex.....
M I K O
von Miko
Bitte Anmelden oder Registrieren um der Konversation beizutreten.
- Miko
- Offline Autor
- Elite Mitglied
- Beiträge: 183
- Dank erhalten: 9

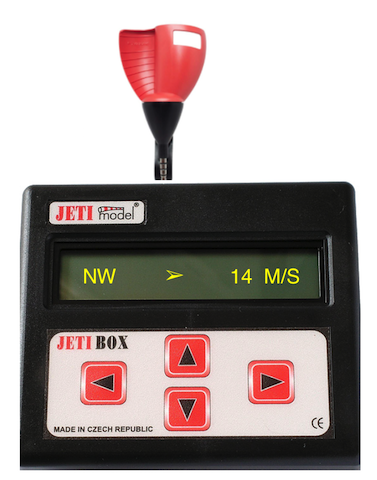

M I K O
Last Edit:16 Dez. 2015 19:10
von Miko
Letzte Änderung: 16 Dez. 2015 19:10 von Miko.
