Google Map on your transmitter screen 12 Okt 2021 08:13 #13

  • Regnar
  • Regnars Avatar
  • Offline
  • Senior Boarder
  • Senior Boarder
  • Beiträge: 73
  • Dank erhalten: 14
This looks great. I have two questions:
  • Can a DC 16 ver. 1 handle this app.?
  • Will it react fast enough for f3b or f3f practice?

Thank you in advance?
Best regards
Regnar

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Google Map on your transmitter screen 12 Okt 2021 11:20 #14

  • Raf
  • Rafs Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Beiträge: 113
  • Dank erhalten: 138
Hello, I think that DC16V1 cannot be used for the app - it has no images and no colors, which are important for the app.
For F3B/F3F/F5B practice - it is good if you have not problem with these limitations:
- GPS speed/latency - Position detected by the GPS chip & telemetry is delayed approx. 0.5s from the real position. When you use "Pre-alarm" or proximity warning, it will be a working solution.
- GPS accuracy - normally the GPS has accuracy about +/- 2m. With increasing speed the accuracy goes worse.
- GPS glitches - sometimes, when the high-G turn manouvre is made, the position and speed is not measured accurately.
I tested our GPS logger (soon at Hepf) in F5F model and for speeds below 150km/h it worked very well.
Voltario T30, Touch Switch, MicroVario, AMS, SE6
Folgende Benutzer bedankten sich: Regnar

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Google Map on your transmitter screen 12 Okt 2021 12:12 #15

  • davidmcq137
  • davidmcq137s Avatar
  • Offline
  • Junior Boarder
  • Junior Boarder
  • Beiträge: 24
  • Dank erhalten: 22
Raf is correct, the app will not run on the DC16 .. in addition to the color issue, the memory usage is very large. The original DC 16 can only handle very small apps .. under 50K memory usage .. this app is 5-6x that size. We have been very impressed with the speed and scale that the newer Jeti systems can handle with lua apps.

I also agree that there are fundamental limits to telemetry latency in the Jeti system and the GPS sensors themselves. I have personally run the app with the Elite GPS logger which works very well.

The idea for this app was to get as much function as possible using the standard Jeti sensors and telemetry system. We don't expect it will be able to perform at the level of the much more expensive specialist stand-alone systems for triangle racing .. we are interested in feedback from pilots on how it performs for them.

Dave
Folgende Benutzer bedankten sich: Regnar, skyfreak

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Google Map on your transmitter screen 12 Okt 2021 18:56 #16

  • Roady123
  • Roady123s Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 517
  • Dank erhalten: 116

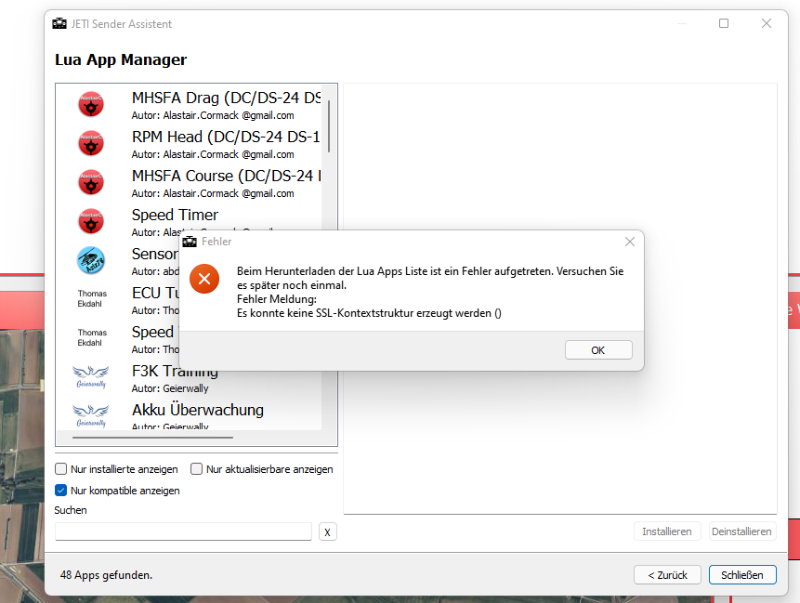

Hallo,da mein Englisch nicht das beste ist, versuche ich es auf Deutsch:whistle: Ich bekomme sobald ich den LUA App Manager öffne imme eine Fehlermeldung.Irgendwas mache ich falsch..

Hat einer eine Idee was ich anders machen muss?


Sender ist eine DC24
Grüße Christoph
Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Google Map on your transmitter screen 14 Okt 2021 00:33 #17

  • davidmcq137
  • davidmcq137s Avatar
  • Offline
  • Junior Boarder
  • Junior Boarder
  • Beiträge: 24
  • Dank erhalten: 22
Hi Christoph,

We have seen this problem before on linux systems .. are you running on a linux system? If so, since the latest version of Jeti Studio was packaged with a version of OpenSSL that had a bug ... the fact that there is an expired certificate is causing this problem.
It should work find on other operating systems.
If you want to fix it, take a look at this article: letsencrypt.org/docs/dst-root-ca-x3-expiration-september-2021/
If you remove the expired certificate, it will work fine since there is already another valid one. We had to fix this on our own system, Debian 10. If you want to know what we did, let me know.
Sorry for the inconvenience.
Dave
Folgende Benutzer bedankten sich: Roady123, skyfreak

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Google Map on your transmitter screen 14 Okt 2021 15:23 #18

  • Roady123
  • Roady123s Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 517
  • Dank erhalten: 116
Hi Dave,
vielen Dank für deine ausführliche Hilfe. Eine entschuldigung deinerseits ist überhaut nicht nötig ;)
Ich verwende Windows 11. Werde es nochmals auf einem Windows 10 PC versuchen.

Vielen Dank für die tolle Arbeit die Ihr da investiert habt :)

Grüße Christoph
