PW antwortete auf servo mix ????

Posted 30 Sep. 2015 11:02 #7
Hi Miko,

digital servos are making 99,99999 % some little noise in centre position, that is normal.

100 Hz or the 17ms, AUTO setting etc. has nothing to do with the noise of digital servos in centre position; but more whit smooth running of the servos.

If possible I would always suggest to use one typ of servo or servos from one company. My personla opinion is that a mixture of servos from different companies is not perfect.

So I would use all MKS or all Graupner servos in the plane.



Regards

PW
Rechtsbeistand u.a. bei "Modellflugproblemen"etc. : Rechtsanwälte Wessels & Partner, Tel.: 02362/27065

PW Modellbautechnik ( Jeti Kombiangebote, Beratung/Einstellservice etc.)
Last Edit:30 Sep. 2015 11:05 von PW
Letzte Änderung: 30 Sep. 2015 11:05 von PW.
Folgende Benutzer bedankten sich: Miko

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • JAyThaRevo
  • JAyThaRevo's Avatar Offline
  • Platinum Mitglied
  • Platinum Mitglied
  • Beiträge: 498
  • Dank erhalten: 81

JAyThaRevo antwortete auf servo mix ????

Posted 30 Sep. 2015 11:05 #8
You will never reach the max. frequency of 333Hz with a Jeti receiver. This high update rate is meant for use with FBL or Gyro units were a update rate of 20Hz could be to slow.

When you intend to use these servos directly from the RX then simply use the settings which are recommended by Jeti.
There is NO ISSUE that I am aware of which would lead to a malfunction.

Neutral possition can be adjusted in the correct TX menu. No problems there!
von JAyThaRevo
Folgende Benutzer bedankten sich: Miko

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Miko
  • Miko's Avatar Offline Autor
  • Elite Mitglied
  • Elite Mitglied
  • Beiträge: 183
  • Dank erhalten: 9

Miko antwortete auf servo mix ????

Posted 30 Sep. 2015 13:11 #9
Thanks, sometimes I create problem where there are NOT !

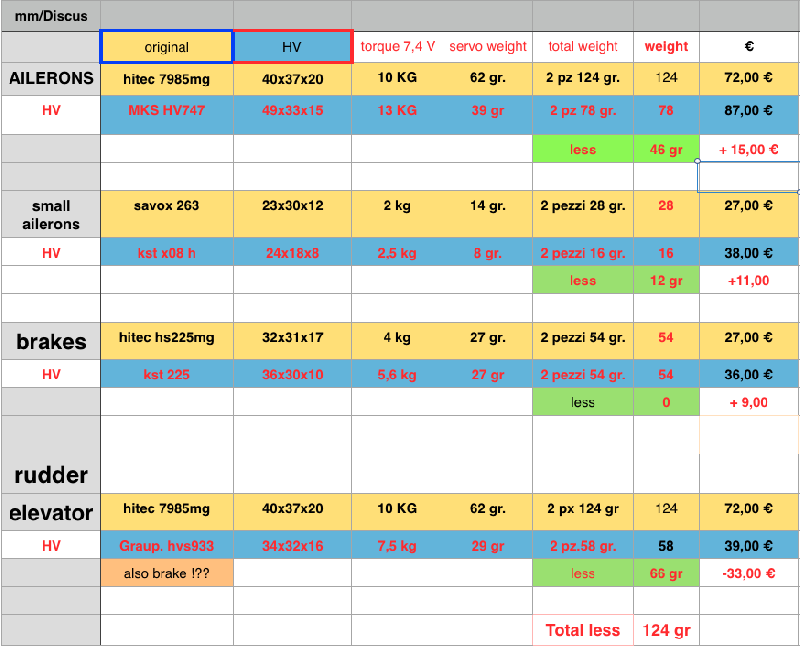

I share my decision also if are not all same brand.

M I K O
Last Edit:30 Sep. 2015 13:14 von Miko

Anhänge:

Letzte Änderung: 30 Sep. 2015 13:14 von Miko.
