Double compensation during Butterfly landing dive 16 Aug 2017 14:52 #1

  • Miko
  • Mikos Avatar Autor
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Beiträge: 183
  • Dank erhalten: 9
Hello !
I know it's possible to pilot with sticks ! but having a DS16 I would like to use all the power of the software but unfortunately I'm not so skilled.
Looking for an help.
I would like to have a double compensation on elevator during landing phase : when flaps reach full down position to contrast nose-up elevator down and after a while when nose is in down position to compensate in the opposite side. For the moment with Butterfly I've reached a good value for phase 1. After start to control "manually" via stick P2.

I tried with sequencer, but this take completely the control of elevator... and the problem is to have change in compensation from sec.4 to sec 11.....

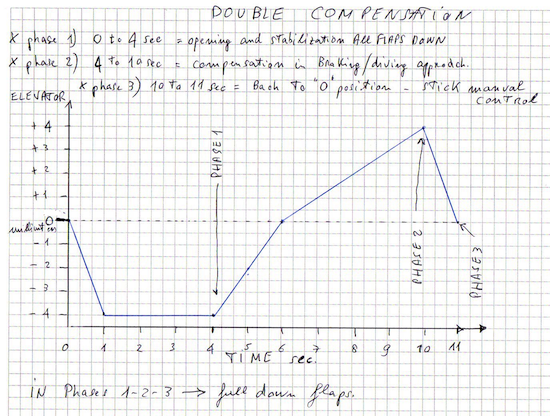

Any idea? I hope what O've drawn it's clear to understand what i would like to do.

Sure I'm flying and landing manually, but again with DS16 power I think to reach a smoothest diving path .......
Thanks for your advices and comments.
M I K O
Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Double compensation during Butterfly landing dive 17 Aug 2017 10:21 #2

  • IG-Modellbau
  • IG-Modellbaus Avatar
  • Offline
  • Moderator
  • Moderator
  • Beiträge: 3138
  • Dank erhalten: 2244
Hello Miko,
"I tried with sequencer, but this take completely the control of elevator... "
If you like to test further in this direction, you should use the "Output" of the sequencer as an "Input" to a mixer.
Not allow the sequencer to control the servo directly.

Ingmar
Folgende Benutzer bedankten sich: Miko

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Double compensation during Butterfly landing dive 17 Aug 2017 13:18 #3

  • Miko
  • Mikos Avatar Autor
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Beiträge: 183
  • Dank erhalten: 9
Thanks. I shall try to use Q1 in a mixer Q1 to Butterfly if possible. Deleting elevator values in Butterfly and use Q1 output as an input.
Fine it's a possibility !
M I K O

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Double compensation during Butterfly landing dive 17 Aug 2017 13:30 #4

  • IG-Modellbau
  • IG-Modellbaus Avatar
  • Offline
  • Moderator
  • Moderator
  • Beiträge: 3138
  • Dank erhalten: 2244
Hello Miko,
I think Q1 should be mixed to Elevator!
I thought the sequencer is used to control the elevator, right?
You can also upload the model file, than I can have a look.

Ingmar

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Double compensation during Butterfly landing dive 17 Aug 2017 13:59 #5

  • Miko
  • Mikos Avatar Autor
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Beiträge: 183
  • Dank erhalten: 9
Ingmar, I follow your order but I don't want you loose too much time for me !

here my model file.

Dateianhang:

Dateiname: 0001SKYW.jsn
Dateigröße:59 KB
M I K O
Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Double compensation during Butterfly landing dive 17 Aug 2017 14:21 #6

  • IG-Modellbau
  • IG-Modellbaus Avatar
  • Offline
  • Moderator
  • Moderator
  • Beiträge: 3138
  • Dank erhalten: 2244
Hello Miko,
there is no sequencer defined.
The model is quite complex, so it is not so simple for me to find out what you like to achieve.

Ingmar
