Atention!!! Servoarm TD0806 08 Mai 2018 12:07 #1

  • HSC
  • HSCs Avatar Autor
  • Offline
  • Junior Boarder
  • Junior Boarder
  • Beiträge: 34
  • Dank erhalten: 23
Well half year ago I have placed TD0806 servos in the plane....

I have put some tiny amount of loctite 243 on the screw too secure the screws ofcourse ( I have always doo like this on Futaba servos)

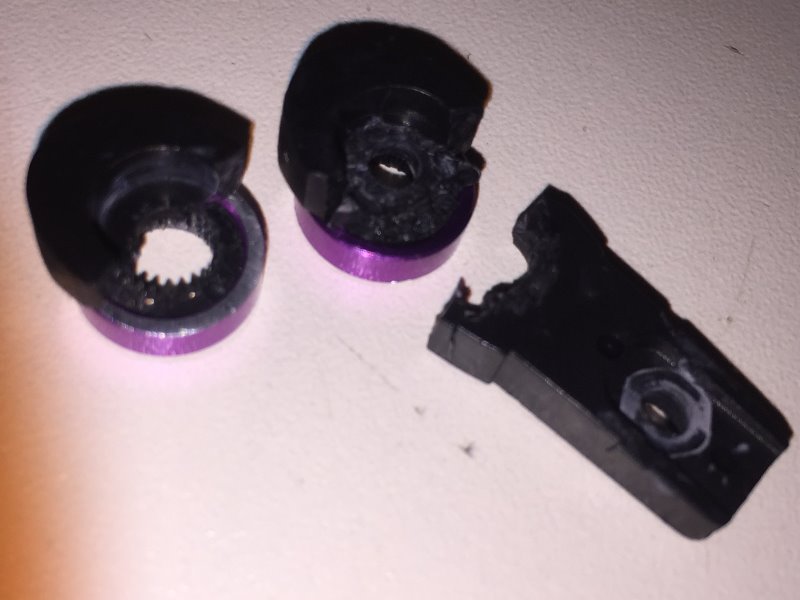

In see what hapened when I try too remove servoarms with the hand after half year....

No special force was needed just usual but both servoarms broke like cooky...

I can not imagine I have actualy fly this servo arms on plane at least 10 times ( both servos on elevator V tail ), you can imagin what could happened...

It seems loctite 243 simply kill the kemical structure of the plastic or there is something else wrong with the plasic...

Soo If someone use this servos with original servoarms pay some atention on them...
Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Atention!!! Servoarm TD0806 08 Mai 2018 12:20 #2

  • HSC
  • HSCs Avatar Autor
  • Offline
  • Junior Boarder
  • Junior Boarder
  • Beiträge: 34
  • Dank erhalten: 23

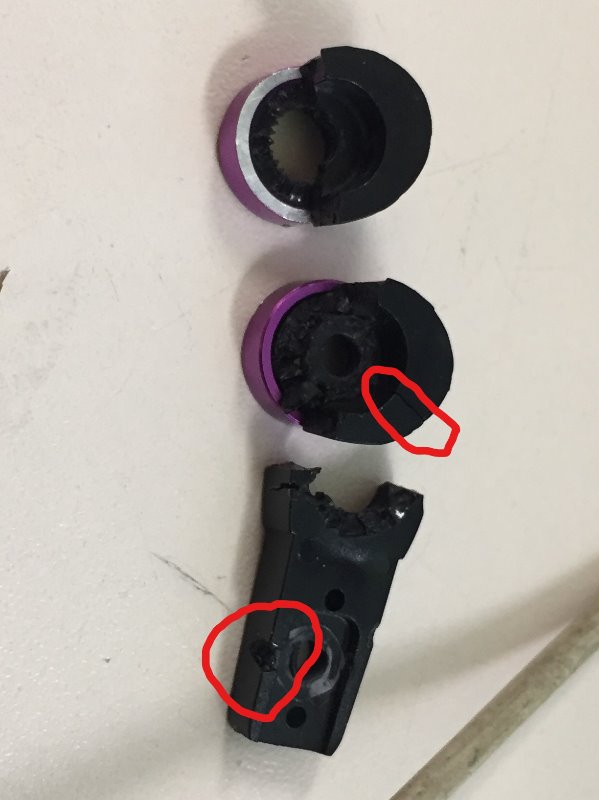

Maybe a bit better qality in this picture...
Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Atention!!! Servoarm TD0806 08 Mai 2018 12:36 #3

  • w.w.
  • w.w.s Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 1001
  • Dank erhalten: 333
Hello,

Loctite (and other screw securing liquids) can destroy plastics. So be carefull not to bring the servo arms in contact with Loctite. I would suggest to put a small amount of Loctite with a tooth pic in the threadhole and then place the servo arm on servo shaft and then screw the screw in.

regards Wolfgang

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Atention!!! Servoarm TD0806 08 Mai 2018 15:00 #4

  • HSC
  • HSCs Avatar Autor
  • Offline
  • Junior Boarder
  • Junior Boarder
  • Beiträge: 34
  • Dank erhalten: 23
Yeah I foud out too...

The point of this post is if someone did the same mistake like i did ...

My advice is check the arms...

Regards
