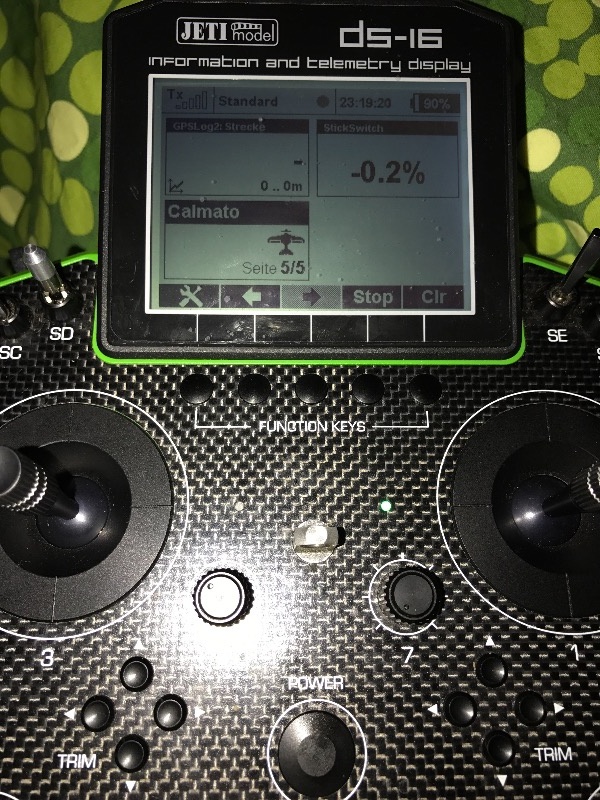

I am thrilled with the Tores that is just wonderful they have delivered again super fast. Just so I imagined my respect. see photo

ich bin begeistert Tores das ist einfach wunderbar sie haben wieder mal super schnell abgeliefert. genau so habe ich es mir vorgestellt mein Respekt. siehe Foto

TeroS wrote: Hmm, Oxy. Cool heli but damn small

Device can be made thinner if you use the RFID-version where antenna is different from electronics: www.ebay.com/itm/13-56MHz-2-5-3-6V-RFID-...a:g:0VAAAOSwdzVXvQXS

But that only increases the total size of system. Making the RFID-sensor itself thinner would require a own PCB and manufacturing and currently I do not see that as an option for me, sorry.

You can make the sensor yourself to two parts like my proto:

About the ESC-installation, that needs to be tested, RF-power on RFID is really small and in my opinion the frequency should not be a problem. In fact the ESC might give issues to RFID rather than vice versa.

Reading distance is up to 3cm with "RCT" tags, using Revo Bump a little less. Look for the setting around line 220 "RxGain_max" as noted here: www.rc-thoughts.com/jeti-rfid-sensor/
Tero

Hello Tero,

yes, ist a cool Heli but has only very limited space (but still better than my T-Rex 250).

Splitting the device - especially with the seperated antenna - could be a solution. When I could get the electronics in europe it would be a lot easier. Under the motor / gear there is some space left.
There the rest of the electronics could be stored. The next thing is to integrate the third sensor in the electronics (after MuLi6 and Unisens) having the Spirit connected via EX-Bus. Where is a Receiver, where every port could be configured as Servo/PPM/EX-Bus/UDI/Sensor/...?
Okay, I could use an Expander. But this needs space too.

best regards

Wolfgang

hallo Wolfgang
dann musst du ein rex empfänger nehmen der hat bis zu drei ex känäle das würde doch dann reichen.


Hello Wolfgang then you have to take a rex receiver who has up to three ex Kanäle that would be enough.

Und hier bekommst du auch in Deutschland die teile siehe Link.

eckstein-shop.de/1356Mhz-RFID-Module-Kits-KeyCard-ID-Card

Rfid, Unisens and Muli in Oxy? No wonder that you are running out of space

Thorn wrote: hallo Wolfgang
dann musst du ein rex empfänger nehmen der hat bis zu drei ex känäle das würde doch dann reichen.


Hello Wolfgang then you have to take a rex receiver who has up to three ex Kanäle that would be enough.

Na ein Rex-Empfänger ist schon drin, aber:

EXT-Port: Unisens
E1: MuLi6
E2: Spirit (EX-Bus)

Damit sind alle 3 Ports belegt. Bleibt also nur ein Expander.

I allready use a REX, but:

EXT-Port: Unisens
E1: MuLi6
E2: Spirit (EX-Bus)

so all 3 ports are in use. I have to use an Expander.
