Rex 12 19 Okt 2020 20:51 #7

  • Nicolas
  • Nicolass Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 1091
  • Dank erhalten: 675
But then you could also lead the two mpx together and Connect it to the Rex 12 epc mpx Right...

Makes no difference If you brigde Them before or afterwards.

Regards
Nicolas
Gruß
Nicolas
Folgende Benutzer bedankten sich: Guy D

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Rex 12 19 Okt 2020 21:39 #8

  • mawa356
  • mawa356s Avatar
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Beiträge: 10
  • Dank erhalten: 5

But then you could also lead the two mpx together and Connect it to the Rex 12 epc mpx Right...

Makes no difference If you brigde Them before or afterwards.

Regards
Nicolas


No, this is not correct. The MPX plugs of the Powerbox device are two independent battery inputs(!) that can't be used as outputs. This particular device has a built-in voltage regulator circuit. So the Powerbox MPX plugs must be connected to the batteries and the JR plugs are two parallel power outputs.

BR
Martin.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Rex 12 19 Okt 2020 21:54 #9

  • Nicolas
  • Nicolass Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 1091
  • Dank erhalten: 675
Clear, but both oututs are regulated, I was Only talking/refering about the Output which is equal... If you using a JR, XT30, tdean or what so ever connector, Not about the input...

If you Bridge the two mpx(whatever Output connectors) together it makes no difference If you use the mpx and the Jr which are Bridged together in the RX itself. They end Up at the Same Lane Right?

Regards
Nicolas
Gruß
Nicolas

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Letzte Änderung: von Nicolas.

Rex 12 19 Okt 2020 21:55 #10

  • mawa356
  • mawa356s Avatar
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Beiträge: 10
  • Dank erhalten: 5

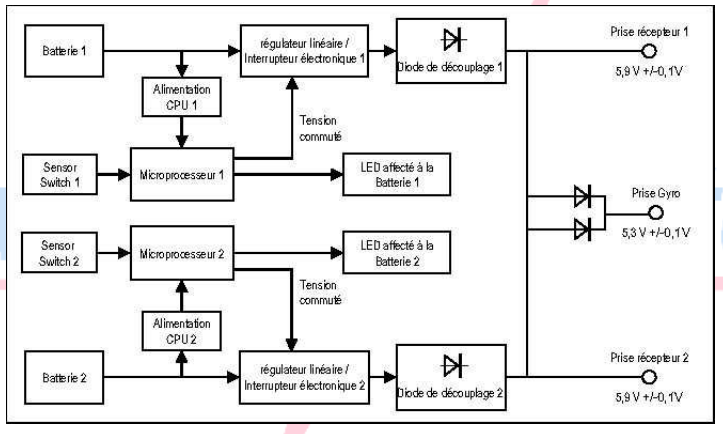

Anhänge:
Folgende Benutzer bedankten sich: Nicolas

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Rex 12 19 Okt 2020 22:09 #11

  • Guy D
  • Guy Ds Avatar Autor
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Beiträge: 14
  • Dank erhalten: 0

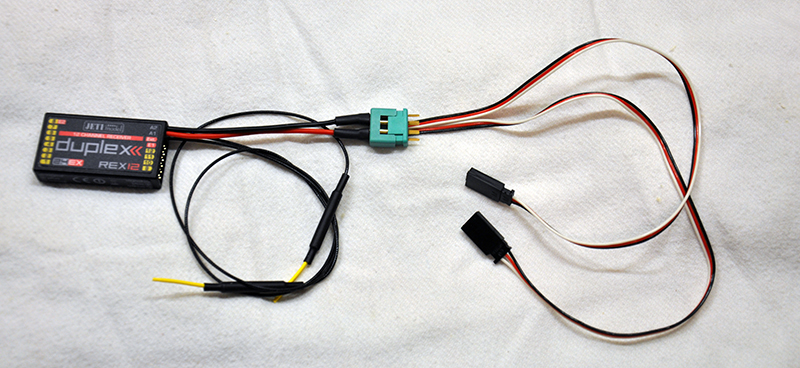

Comme ici ?

Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Rex 12 19 Okt 2020 22:13 #12

  • mawa356
  • mawa356s Avatar
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Beiträge: 10
  • Dank erhalten: 5

Clear Sie, but both are regulated, I was Only talking/refering about the Output which is equal...Not the input

If you Bridge the two mpx together it makes no difference If you use the mpx and the Jr which are Bridged together in the RX itself. They end Up at the Same Lane Right?

Regards
Nicolas


I think we are talking a bit cross purposes :-)

V+ and V- of the receiver's MPX and the receiver's JR connectors are connected.

The two MPX plugs of the Powerbox device are independent battery inputs and cannot be bridged.

The two JR plugs of the Powerbox device are the power outputs and can be bridged.

I am not sure which two MPX's ("If you Bridge the two mpx together it makes no difference...") you are refering to, most probably this is our misunderstanding :-)


BR
Martin.
Folgende Benutzer bedankten sich: Nicolas

Bitte Anmelden oder Registrieren um der Konversation beizutreten.
