THEMA:

Is it possible to have 2 rc switches in one glider ?

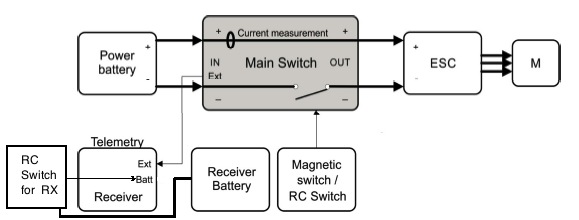

The drawn attached explain what I want to do : switch on RX and Power switch via 2 RC switches.
Maybe the command via a sequencer : first RX and then Power Switch (for electro motor)

Thanks

If it's a stupide question, be so kind to explain me why, so I can progress and learn with your help!

I never used RC switch so I don't know how is working the "binding" with this apparat.

Turning the question : can I be sure that it's possible to operate separately 2 RC switch at the same time?
switch on rx and then power for motor with a sequence ?

I would like to close the fuselage at home and when at the slope be able to switch on first rx and send the
power circuit for motor WITHOUT opening the glider.

Thanks again !

Hy
I think there is a way to directly switch the main switch from a digital output of the receiver. So you don't need a second rc switch.
Lukas

Lukas,
can you switch on and off the power to the motor in a "secure" way ? without interruption of main power negative cable?
travel around with a 6S and 23x12 in a seilbahn already connected to the motor ....I would like to be VERY sure of what happen in the circuit !

With this circuit can I be VERY sure about security also for accidental motor start ?

I mean traveling around with 6S already connect to ESC (Master Mezon 120)

hello,

only 1 pc RCSW or RC powerswitch per model (modelmemory) possible.
