Dave has now been able to add function extensions for Projet and Kingtech ECU status codes to the Instrument Panel app, thanks to Simon Nimmervoll for providing us with the list of codes. Note that Dave has not been able to test the extensions since neither of us have Projet or Kingtech turbines.

Dave has now added more function extensions for gas turbine ECUs to the Instrument Panel app, this time for VSpeak Evojet, Digitech CTU Kingtech and Digitech CTU Projet.
The extensions allow the instrument panel to convert ECU status codes into plain text, for example "Trim Low", "Running", "Cool Down". All other dials in the app work fine with any telemetry data whether or not there is a function extension for that particular brand of ECU and telemetry converter.
To get the new extensions simply go to the website and create a new repo, then uninstall and install from Jeti Studio.

Dave has done a great job adding more LUA Function Extensions to the Instrument Panel app. The full list of current extensions is:
CTU Kingtech
CTU Projet
Vspeak EvoJet
Vspeak Jakadofsky
Vspeak Jetcat
Vspeak Kingtech
Vspeak Projet
Vspeak Swiwin
Swiwin
Xicoy.

hmm, da mein Englisch sich wie ,,Bahnhof'' anhört, und ohne Google nichts geht.......
frage ich mich, wie kommt diese App auf meine DS16 II ?

We have added 2 more turbine ECU status code lists to the Instrument Panel app, VSpeak AMT, and JetCat's own telemetry converter software v8.4 onwards.
All telemetry from all ECUs or sensors can use the app, these lists only run the text box in the jet panel that converts ECU status code numbers into plain text, e.g. Off, PreHeat, Glowplug fail, and so on.

I have just published two panels for twin turbines in Dave McQueeney's lovely Instrument Panel LUA app. Reload the app to get them in your Tx.

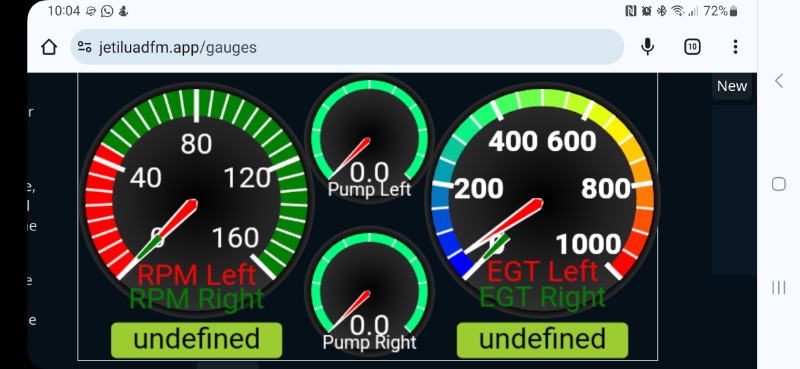

Twin Turbine 1 uses a red and a green needle for left and right engines in each of RPM and Temperature dials, and 2 separate Pump value dials. Each engine gets its own Status text box.

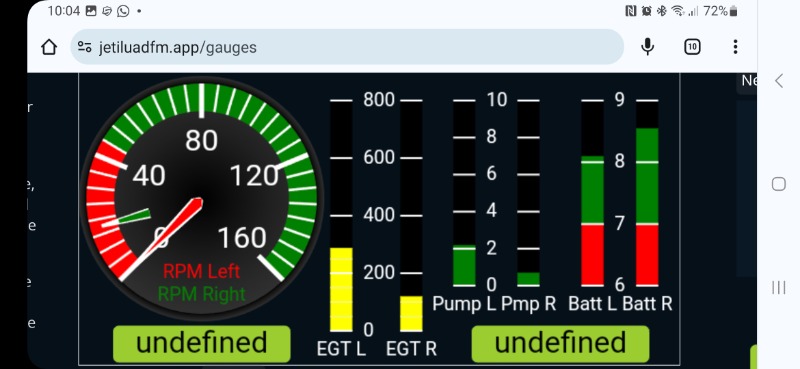

Twin Turbine 2 uses the two needle RPM dial, plus separate vertical bars for each engine for Temperature, Pump value, and Battery V. Each engine gets its own Status text box.
You can of course modify these to suit your preference, or take inspiration and design your own from blank!
